| Model No.: | HO-10-BL60WJ | HO-10-BL120WJ | HO-10-BL180WJ | HO-10-BL240WJ | |

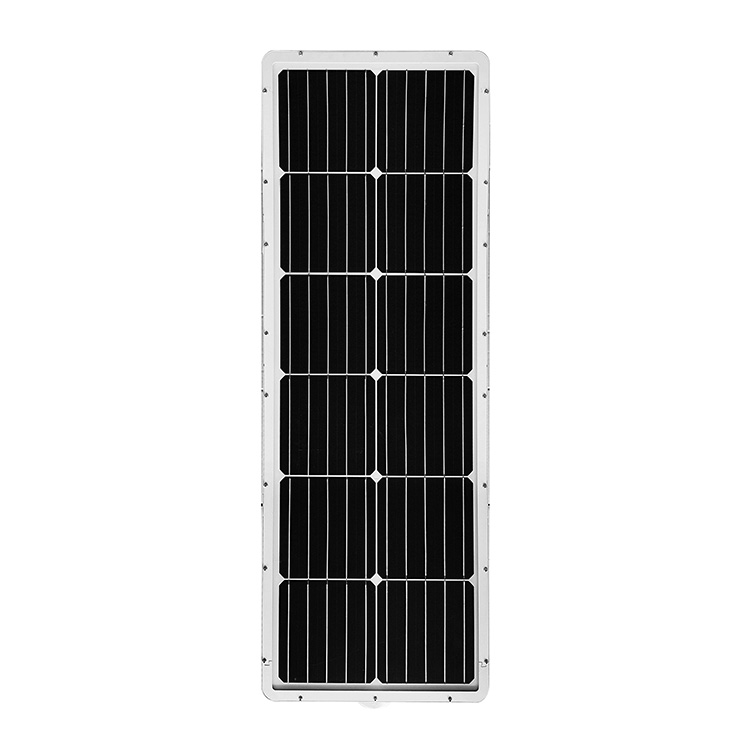

| Solar panel | Max power | 6V40W (Monocrystalline silicon) | 6V 60W (Monocrystalline silicon) | 6V 80W (Monocrystalline silicon) | 6V 100W (Monocrystalline silicon) |
| Life span | 25 years | 25 years | 25 years | 25 years | |
| Battery | Type | LiFePO4 lithium battery 3.2V 45AH | LiFePO4 lithium battery 3.2V 60AH | LiFePO4 lithium battery 3.2V 75AH | LiFePO4 lithium battery 3.2V 90AH |
| Life span | 5-8 years | 5-8 years | 5-8 years | 5-8 years | |
| LED Source | Power | 60W (60PCS) | 120W (120PCS) | 180W (180PCS) | 240W (240PCS) |
| Chips brand | Bridgelux high efficiency 3030 led chips | Bridgelux high efficiency 3030 led chips | Bridgelux high efficiency 3030 led chips | Bridgelux high efficiency 3030 led chips | |
| lumens | 150-160lm/W | 150-160lm/W | 150-160lm/W | 150-160lm/W | |
| Luminous angle | 80*150° | 80*150° | 80*150° | 80*150° | |
| Mounting height: | 4m | 5m | 6m | 7m | |
| Mounting distance: | 12m | 15m | 18 | 20m | |
| For Pole Size | Pole upper Diamter 60-80mm | ||||
| Lamp body material | Aluminium Alloy | ||||
| Charging time | 5-6hours (with enough strong shine) | ||||
| Lighting time | 10-12 hours per day,sustain 3-4 rainy days | ||||
| Working mode | PIR sensor and light control | ||||
| Catificates | CE、ROHS、IP65 | ||||
| Warranty | 3 years | ||||
| Packing | Product size | 531*366*92.8mm | 768*366*92.8MM | 1006*366*92.8mm | 1244*366*92.8mm |
| N.W. | 6.4KGS | 8..0KGS | 9.5KGS | 11.5G | |
| Package size | 625*415*180MM | 860*415*180MM | 1100*415*180mm | 1340*415*180MM | |
| G.W. | 7.5KGS | 9.2KGS | 10.8KGS | 13KGS | |
| Q'ty/ctn: | 1set/ctn | 1set/ctn | 1set/ctn | 1set/ctn | |
| Container | 20GP | 590PCS | 430PCS | 330PCS | 270PCS |
| 40HQ | 1420PCS | 1020PCS | 810PCS | 580PCS | |
60W一体化太阳能路灯建议安装在8-9m高杆上，照明道路不超过4条车道，如主街道、高速公路和公路.
|
|
