| SPECIFICATIONS | 50WLED | 100WLED | 150WLED | 200W LED | 300WLED |
| LED Wattage (W | 50W | 100W | 150W | 200W | 300W |
| Lumens (Im) | 7,000 ±3% | 14,000±3% | 21.000+3% | 28,000 ±3% | 42.000+3% |
| Efficiency (lm/W) | 140 Im/w | 140 Im/w | 140 Im/w | 140 Im/w | 140 Im/w |
| Equivalent of MH/HID | 150~200W | 300~400W | 500~600W | 600~800W | 1000~1200W |

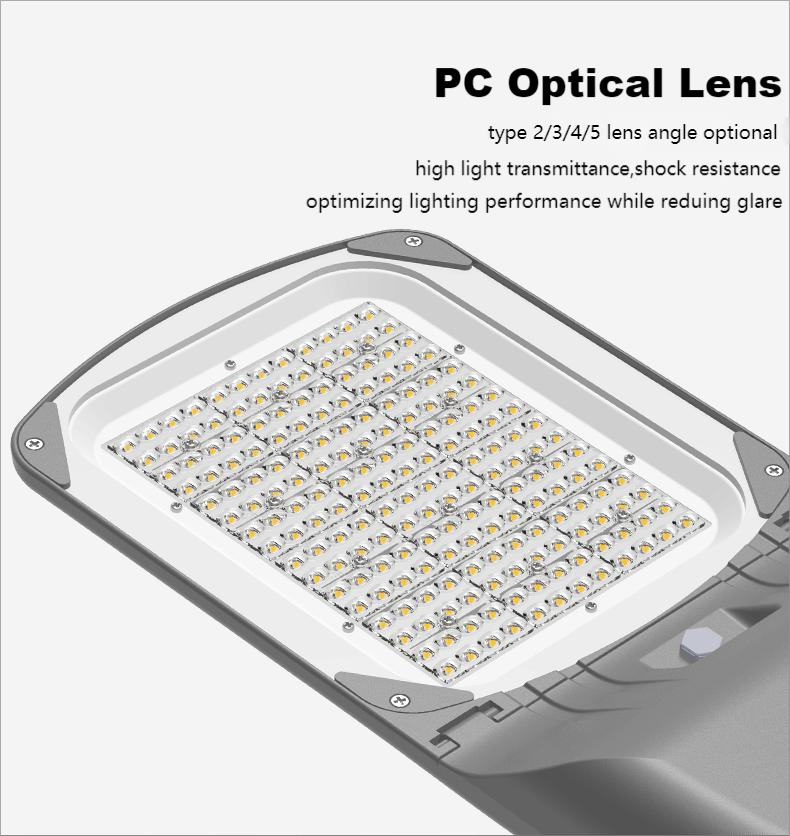

| Light Distribution | TYPE I/HI/IV/V,Type IIl(std.) | ||||
| Color lemperature (CCl) | 3000K~6500K | ||||
| CR | 70+(std.)/80+(optional) | ||||
| Power Factor | >0.95 | ||||
| nput Voltage | 120-240/277Vac 50/60Hz(std.),200-347V/480Vac 50/60Hz(optional) | ||||

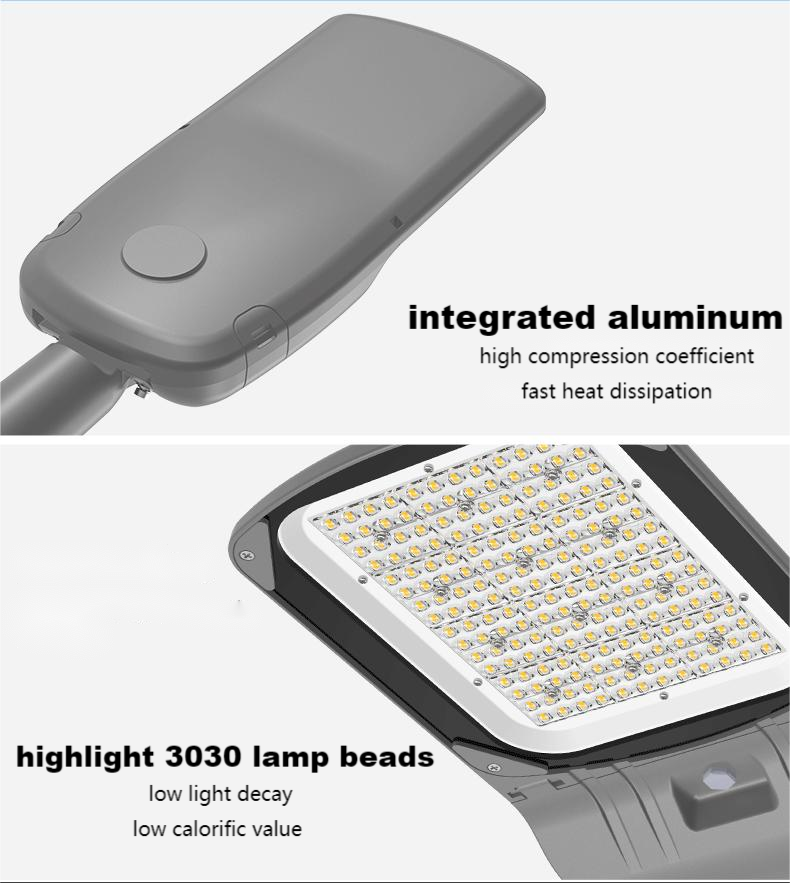

| Housing | 100%Die Cast Aluminium | ||||
| Lens | lempered Glass (IK08 | ||||
| Operation l emperature | -30～45℃ | ||||
| GW (KG) | |||||
| Carton Dimension (mm) | 595*225*160 | 645*275*160 | 695*275*160 | 745*275*160 | 750*370*160 |
| Certification | CE LVD EMC(IEC/EN60598-1 EN60598-2 EN60598-5 IEC55015) | ||||
| Material Usage | RoHS | ||||

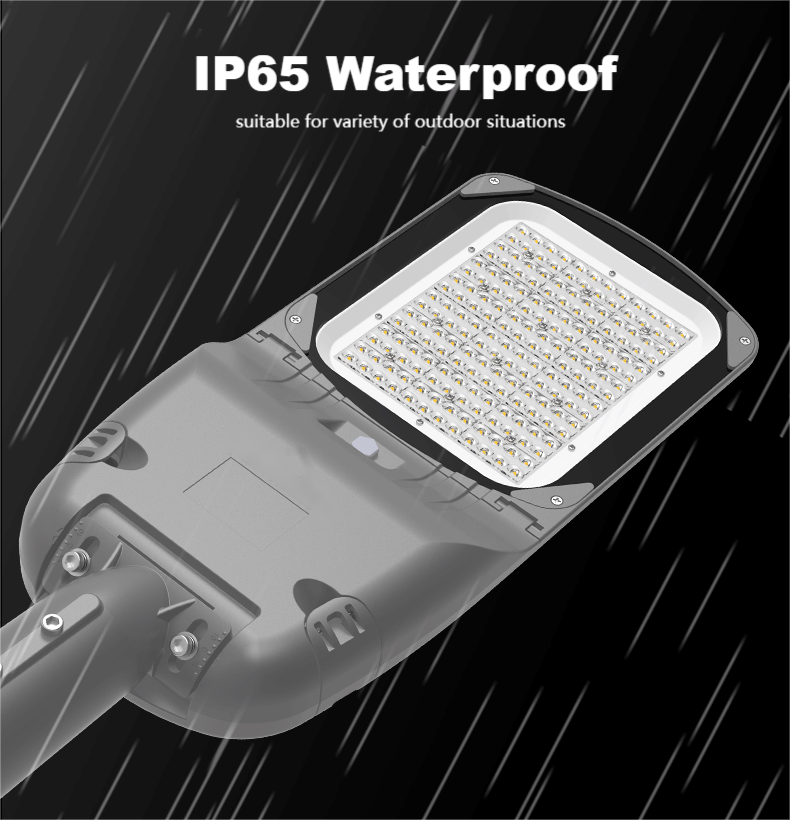

| Enviornment /IP Rate | IP65 | ||||
| Humidity | 5%-90%RH,non condensing | ||||
| Warranty | 3~5 vears | ||||
